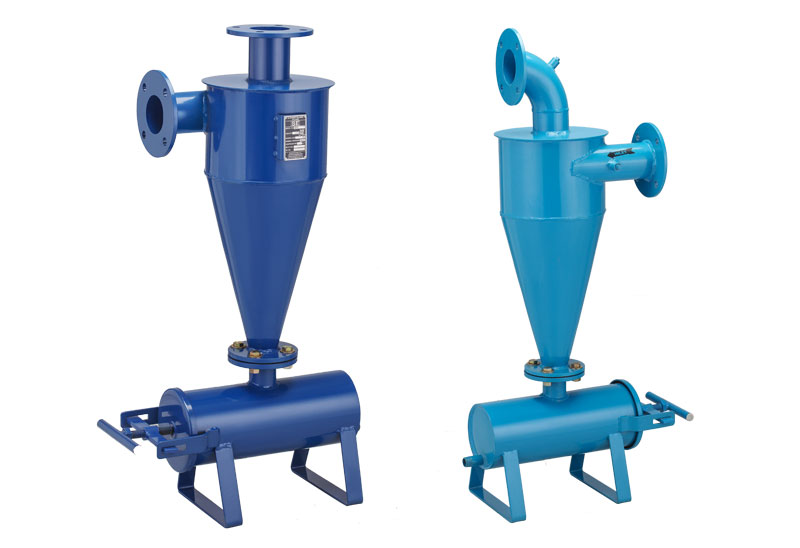

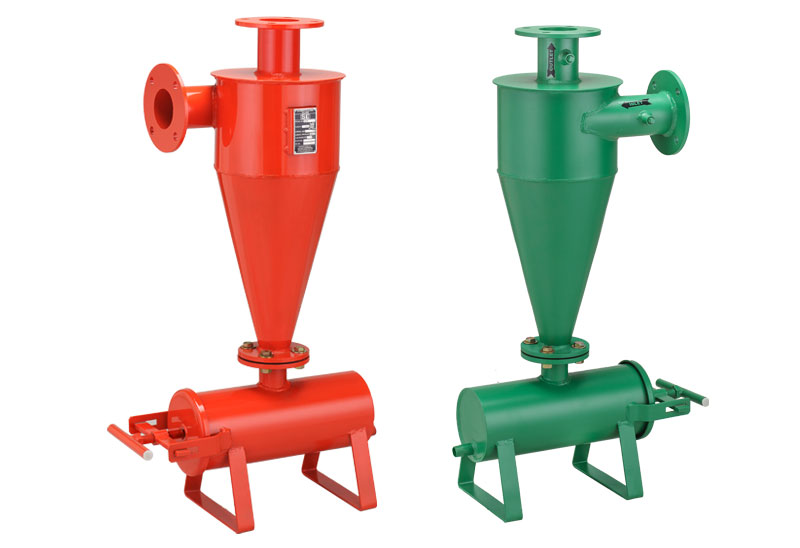

Hydro Cyclone Filters
The Cell & Cone are made from MS sheet & firmly fitted with pipe & flange. The collection tank is made from MS pipe of desirable thickness. The cover is provided with rubber gaskets .The drain point is provided to remove collected matters. The filter is capable to separate silt and sand coming with water. The filter is Hot Dip Galvanized or Powder Coated as desired.
Shivam Engineers Hydro Cyclone Filters are used as primary filters. The Filters are normally used when water contains heavy suspended particles like sand. Water comes inside the Hydro Cyclone and a vortex is formed by which the heavy particles are collected in the sedimentation tank. Shivam Engineers Hydro Cyclone filters are manufactured in MS sheet of 3 or 4 mm thickness and are provide with pure polyester coat of more than 80 microns from both inside and outside. Due to its robust and flexible structure Hydro cyclone filters can be assembled easily. Cleaning of sedimentation tank is very easy when done at regular intervals.
Specifications
- Very Strong and durable structure
- Filters are pure polyester coating of more than 80 microns.
- Filters allows to separate sand type particle from water.
- Easily separate suspended solid particles from water.
- Shivam Engineers Hydro Cyclone Filters are simple and easy to clean.
- Available in different colours and with different capacities.
- All Hydro cyclone filters are hydrostatically tested to be leak proof at pressure of 6 kg/cm.sq Maximum Pressure drop 0.75bar
