Media Filters

zoom

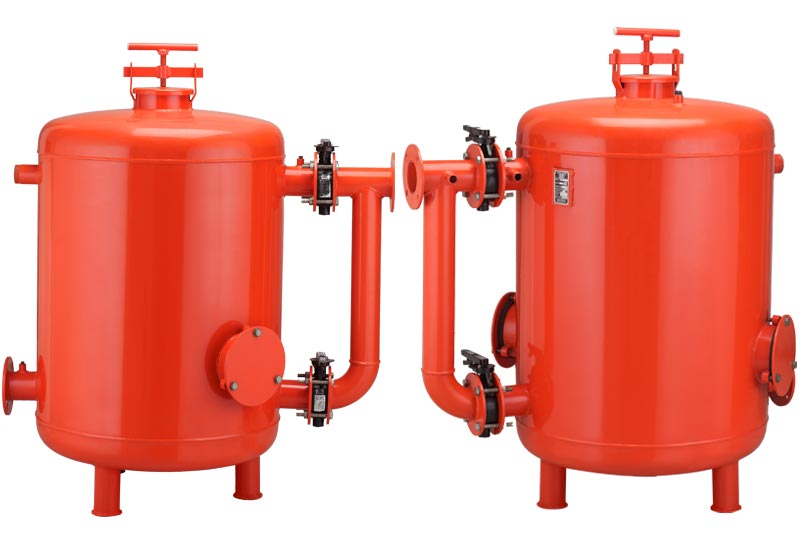

Media Filters are primarily used to separate river silt and other biological impurities from the water. It has a robust fabrication with quality and precision. Shivam Engineers use Quartz Silica sand as medium of filtration. A bed of sand up to height approximately 400mm is formed inside the shell and water is allowed to flow through it. Then the water is collected in the lower part of the filter which is fed to the system. It is manufactured in 3mm MS Sheet and provided with pure polyester coating of thickness more than 80 microns on both inside and outside. In such sand filters threading and flanged connections are available from 1.5" to 3" as per demand, in the range 10 to 50 m3/hr.

Specifications

• Shivam Engineers's sand filters are hydrostatically tested to be leak proof at internal pressure of 6 kg/cm.sq
• Flow Rate: 10(2"), 20/25(2"), 30/40(2½"), 40/50(3") 50(4") m³/hr
• Our filter can handle high volume of flow.
• Also available at shivam Engineers in horizontal assembly with same flow ranges.
• Simple in operation and easy to backwash.
• For backwash either butterfly valves or plastic ball valves are used.
• Our Media Filter can handle variations in flow.
• Also available in different colours.
